High Frequency Machine: Technology, Applications, and Complete Buying Guide
What Is a High Frequency Machine?
A High Frequency Machine is an industrial equipment that generates electromagnetic waves at high frequencies (typically 13.56 MHz, 27.12 MHz, or 40.68 MHz) to heat and bond thermoplastic materials. Unlike traditional heating methods that apply heat externally, high frequency technology generates heat internally within the material through molecular friction, resulting in uniform, precise, and strong welds.
How High Frequency Welding Works:
- The machine generates high-frequency electromagnetic waves
- Waves penetrate polar thermoplastic materials (PVC, TPU, EVA, etc.)
- Electromagnetic energy creates internal molecular friction
- Heat builds up from within while pressure is applied
- Materials fuse together forming a seamless, strong bond upon cooling
Key Advantages of High Frequency Technology:
- Uniform Heat Distribution — Consistent temperature throughout the welding area eliminates cold spots
- Minimal Surface Damage — No scorching or burning on material surfaces
- High Bonding Strength — Welds meet or exceed the strength of base materials
- Fast Production Speed — Short cycle times suitable for high-volume manufacturing
- Clean Process — No adhesives, solvents, or additional consumables required
Materials Compatible with High Frequency Machines
High frequency welding is specifically designed for polar thermoplastics that respond effectively to electromagnetic fields. The following materials are commonly processed using High Frequency Machines:
| Material | Common Applications | Properties |
|---|---|---|
| PVC (Polyvinyl Chloride) | Tarpaulins, inflatables, medical bags | Excellent high frequency response, cost-effective |
| TPU (Thermoplastic Polyurethane) | Automotive interiors, protective covers | High flexibility, excellent abrasion resistance |
| EVA (Ethylene-Vinyl Acetate) | Foam products, insoles, sports equipment | Lightweight, good cushioning properties |
| PET / PETG | Blister packaging, clamshells, display units | Crystal clear, excellent formability |
| PU-Coated Fabrics | Rainwear, military gear, industrial covers | Waterproof, durable, flexible |
Industrial Applications of High Frequency Machines
High Frequency Machines serve a wide range of industries where precision welding and sealing are critical. From automotive manufacturing to medical device production, these machines provide reliable, high-quality results for both small-scale workshops and large industrial plants.
| Industry | Applications | Benefits |
|---|---|---|
| Automotive | Seat covers, sun visors, door panels, floor mats, air vents | Durable seams, clean finish, high production speed |
| Medical | IV bags, blood bags, medical cushions, protective covers | Leak-proof seals, sterile welding, FDA-compliant |
| Packaging | Blister packs, clamshells, thermoformed trays, seal bags | Product protection, tamper-evident, attractive appearance |
| Inflatable Products | Air mattresses, inflatable boats, life vests, waterproof bags | Airtight seals, pressure-resistant, waterproof |
| Textile & Outdoor | Tents, tarpaulins, awnings, backpack covers, rainwear | Weatherproof bonds, reinforced seams, UV resistant |
| Sports & Leisure | Football bladders, gym mats, yoga mats, pool toys | Consistent quality, durable welds, mass production ready |
Key Components of a High Frequency Machine
Understanding the core components of a High Frequency Machine helps buyers evaluate machine quality and ensure proper maintenance:
- RF Generator (Oscillator) — Converts electrical power into high-frequency radio waves at 13.56/27.12/40.68 MHz
- Resonant Circuit — Matches impedance between the generator and welding electrodes for optimal energy transfer
- Electrodes (Welding Bars) — Conduct high-frequency energy to the material; available in various shapes and sizes
- Mold/Tooling — Custom-designed fixtures that shape materials and define the weld pattern
- Pneumatic/Hydraulic System — Provides consistent pressure during the welding cycle
- Control Panel (PLC/Touch Screen) — Allows operators to set time, pressure, and heating parameters precisely
- Safety Systems — Spark detection, emergency stops, and protective interlocks for operator safety
- Cooling System — Prevents overheating of electronic components and electrodes
How to Choose the Right High Frequency Machine
Selecting the appropriate High Frequency Machine requires careful evaluation of your production requirements. Here are the critical factors to consider:
1. Product Size and Dimensions
Measure the maximum dimensions of your products to determine the required worktable size and electrode coverage. Consider both length and width requirements, as well as any height restrictions.
2. Material Type and Thickness
Different materials require different frequency settings and power levels. Thicker materials generally require higher power output. Confirm that the machine can handle your specific material composition.
3. Production Volume Requirements
For high-volume production, consider machines with:
- Auto-feeding and auto-extraction systems
- Multi-station rotary tables for continuous operation
- Fast cycle times (typically 1-5 seconds per cycle)
- Automated temperature and pressure controls
4. Power Output
Machine power is measured in kilowatts (kW). Standard configurations include 5kW, 8kW, 10kW, and 15kW models. Higher power enables faster welding of larger or thicker materials.
5. Precision and Control Requirements
For applications requiring high accuracy (medical devices, precision automotive parts), look for machines with digital controls, programmable welding cycles, and real-time monitoring systems.
6. Supplier Experience and Support
Partner with an experienced manufacturer that offers comprehensive technical support, spare parts availability, and training. Chenghao Machinery provides turnkey solutions including machine configuration, mold design, and on-site installation support.
Common Challenges and Solutions
| Challenge | Cause | Solution |
|---|---|---|
| Uneven Welding | Uneven pressure distribution | Adjust pneumatic pressure; redesign mold with balanced contact points |
| Material Burning | Excessive heating time or power | Reduce welding time; adjust power settings; improve cooling |
| Weak Bond Strength | Insufficient heat penetration | Increase power output; extend welding time; check material compatibility |
| Sparking Issues | Poor electrode alignment or moisture | Check grounding; replace worn electrodes; dry materials before welding |
| Inconsistent Cycle Times | Variations in material thickness | Use material specifications; calibrate machine regularly |
Maintenance Tips for High Frequency Machines
Regular maintenance extends machine lifespan and ensures consistent welding quality:
- Daily: Clean electrodes and worktable; check for debris or residue buildup
- Weekly: Inspect pneumatic connections; check coolant levels; verify grounding
- Monthly: Calibrate temperature and pressure sensors; check electrical connections
- Quarterly: Replace worn electrodes; inspect capacitors; update firmware if available
- Annually: Professional service inspection; replace aging components; system recalibration
Tip: Consider signing a maintenance contract with your equipment supplier to ensure professional servicing and minimize downtime.
Frequently Asked Questions
Q1: What is the difference between high frequency welding and ultrasonic welding?
A: High frequency welding uses electromagnetic waves (13.56-40.68 MHz) to generate internal heat within polar thermoplastics, while ultrasonic welding uses high-frequency vibrations (15-40 kHz). High frequency is ideal for large, flat seams and thick materials, while ultrasonic excels at small, precise joints. Learn more about ultrasonic machine technology.
Q2: How long does a typical high frequency welding cycle take?
A: Cycle times vary based on material thickness, product size, and complexity. Standard welding cycles range from 1 to 5 seconds, with additional pressing and cooling time. Total cycle time including loading and unloading typically ranges from 5 to 15 seconds per part.
Q3: What power output do I need for my application?
A: For small products (under 30cm), a 5kW machine is sufficient. Medium products (30-60cm) typically require 8-10kW. Large industrial applications (over 60cm) may need 15kW or higher. Consult with your supplier to determine the optimal power for your specific materials and production requirements.
Q4: Can high frequency machines weld non-PVC materials?
A: Yes, high frequency technology works with various polar thermoplastics including TPU, EVA, PET, PETG, and PU-coated fabrics. Non-polar materials like polypropylene (PP) and polyethylene (PE) do not respond to high frequency welding and require alternative methods such as hot plate welding or ultrasonic welding.
Q5: How much does a high frequency machine cost?
A: Prices vary based on power, automation level, and features. Standard manual machines start around $3,000-$5,000 USD, while semi-automatic and fully automated systems range from $8,000 to $50,000+. View our detailed pricing guide.
Q6: What safety precautions are needed when operating a high frequency machine?
A: Operators should wear appropriate PPE, ensure proper grounding, keep the work area clean, and follow lockout/tagout procedures. Modern machines include safety interlocks, emergency stops, and RF shielding. Learn about safety considerations for high frequency machines.
Why Choose Chenghao Machinery for Your High Frequency Machine?
As a professional high frequency machine manufacturer in China, Chenghao Machinery offers comprehensive solutions for your industrial welding needs:
- 20+ Years Experience — Specialized in high frequency, ultrasonic, and heat sealing technology
- Custom Engineering — Tailored machine specifications and mold design for your specific products
- Complete Product Range — From glove welding machines to automotive sun visor welders
- Global Service Network — Installation, training, and technical support worldwide
- Quality Certified — ISO9001 certified manufacturing with rigorous quality control
Ready to Source Your High Frequency Machine?
Get a customized quotation for your production requirements. Our engineering team will recommend the optimal machine configuration based on your materials, product specifications, and production volume.
Get Free Quote View ProductsRelated Articles You May Find Useful:
- High Frequency Machine Technology for Efficient Plastic Welding and Sealing
- High Frequency Machine in Industrial Manufacturing: Applications, Benefits, and Selection Guide
- Ultrasonic Machine Technology for Precision Industrial Welding and Sealing
- Plastic Welding Technology for Strong, Precise, and Efficient Industrial Bonding
- Welding Machines for Advanced Industrial Plastic and Material Bonding
© 2024 Chenghao Machinery | High Frequency Machine Manufacturer in China
Email: sales11@chenghaointernational.com | WhatsApp: +86 15817655869
Featured Products

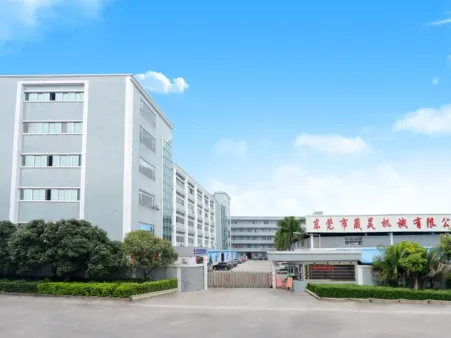

Collection about CHENGHAO
User Reviews
What users say about CHENGHAO
Frequently Asked Question
Do you have any question?
A high frequency machine, often called an HF welder or RF welder, uses radio frequency energy to weld, seal, or bond thermoplastic materials like PVC, PET, and PU. The process generates heat inside the material itself, causing it to melt and fuse under pressure, creating an incredibly strong and clean seam. This technology is ideal for applications requiring airtight or waterproof seals.
The primary advantage of a CHENGHAO high frequency machine is the quality and consistency of the bond. The weld is as strong as the original material, tamper-evident, and clean with no need for messy adhesives or solvents. The process is also extremely fast, making our high frequency machine perfect for high-volume production, resulting in lower operational costs and higher throughput.
Absolutely. Customization is at the heart of what we do at CHENGHAO. We understand that standard equipment often doesn't fit unique production needs. Our integrated team of R&D and design engineers excels at developing a bespoke high frequency machine tailored to your product, material, and workflow, ensuring optimal performance and efficiency.
A high frequency machine is a versatile tool used across many industries. We frequently build systems for medical device manufacturing (blood bags, IV bags), the automotive sector (sun visors, door panels), packaging (blister packs), textiles (tarpaulins, tents), and stationery (binders, folders). Any industry working with polar thermoplastics can benefit from a high frequency machine.
Reliability is a cornerstone of our engineering philosophy. As an ISO 9001:2015 certified company with experience since 2007, we build every high frequency machine with high-grade components and robust construction designed for continuous, 24/7 operation. Our commitment to quality ensures maximum uptime and a long operational lifespan for your high frequency machine.
CHENGHAO provides comprehensive, end-to-end support for every high frequency machine we sell. This includes expert installation, in-depth operator training, and a responsive technical service team for maintenance and repairs. We see ourselves as your long-term partner, dedicated to ensuring your high frequency machine consistently operates at its peak.
Our updates and blog posts

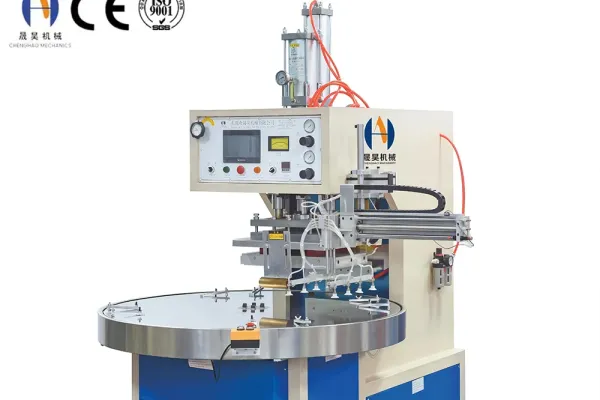

High Frequency Machine Solutions for Modern Manufacturing
Discover how the High Frequency Machine improves strength, speed, and efficiency in manufacturing. Learn its benefits, applications, and why businesses choose Chenghao.

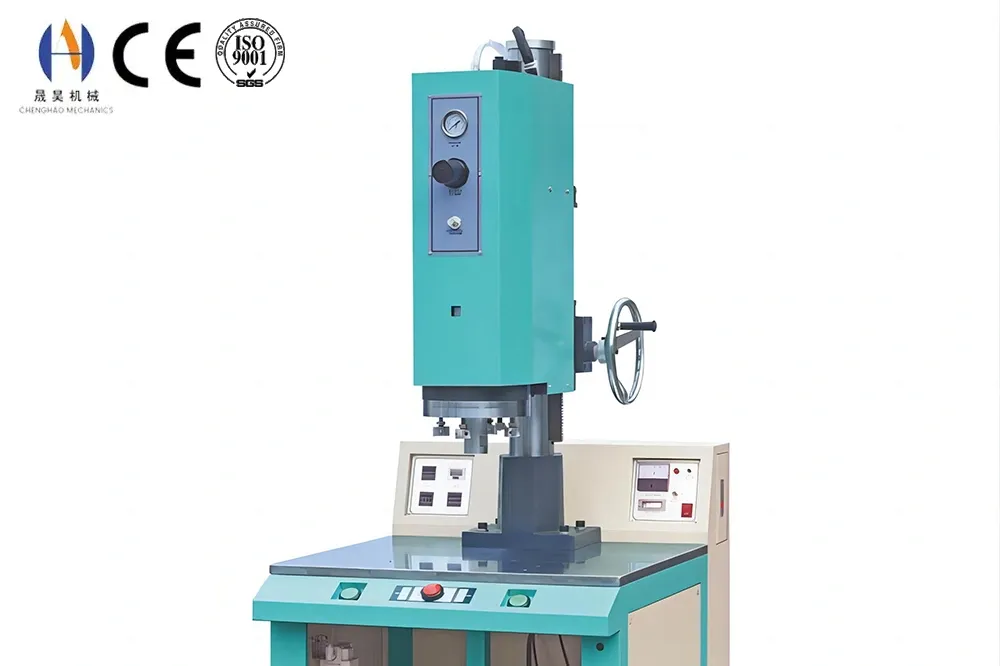

High-Quality Ultrasonic Machine for Welding and Packaging
Discover the benefits of Ultrasonic Machine technology in packaging, textiles, and manufacturing. Chenghao provides reliable Ultrasonic Machine solutions for global industries.

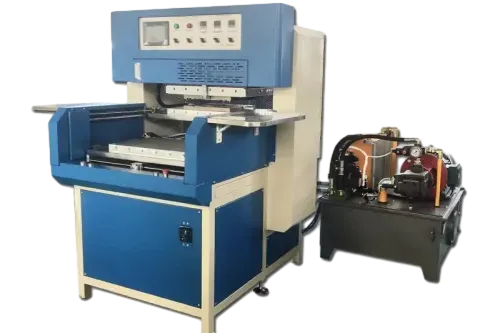

Dedicated Machine for Precision and Efficiency in Manufacturing
