Introduction
With the growing demand for efficient, customized, and cost-effective plastic packaging solutions, blister thermoforming machines have become an essential part of modern manufacturing.
A blister thermoforming machine uses heat and forming technology to transform plastic sheets into customized three-dimensional shapes. By combining heating, forming, and trimming processes, these machines allow manufacturers to produce high-quality blister packaging, trays, containers, and protective plastic components.
Industries such as electronics, medical products, hardware, food packaging, and consumer goods rely on thermoforming technology to achieve lightweight, durable, and visually appealing packaging solutions.
This guide explains what a blister thermoforming machine is, how it works, its applications, advantages, and key factors to consider when selecting the right equipment.
What Is a Blister Thermoforming Machine?

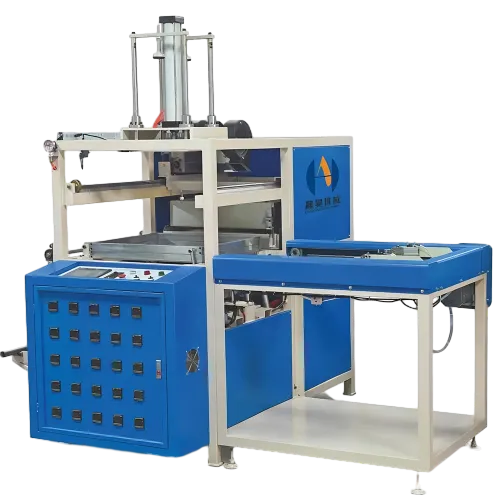

A blister thermoforming machine is industrial equipment designed to produce plastic blister products by heating plastic sheets and forming them into specific shapes using molds.
The thermoforming process allows manufacturers to create:
- Product cavities
- Protective trays
- Transparent packaging shells
- Customized plastic containers
Common materials used in blister thermoforming include:
- PVC
- PET
- PETG
- PP
- PS
These materials are selected based on requirements such as:
- Transparency
- Strength
- Flexibility
- Chemical resistance
- Cost efficiency
How Does a Blister Thermoforming Machine Work?
A blister thermoforming machine generally operates through several key stages.
1. Plastic Sheet Heating
The process begins by heating a plastic sheet until it reaches the required forming temperature.
A reliable heating system ensures:
- Uniform temperature distribution
- Better material flexibility
- Reduced deformation
Proper heating is critical because uneven temperatures may cause:
- Wrinkles
- Uneven thickness
- Poor forming quality
2. Sheet Forming
After heating, the softened plastic sheet is positioned over a mold.
The machine uses different forming methods, including:
Vacuum Forming
Vacuum pressure removes air between the plastic sheet and mold surface.
Advantages:
- Simple operation
- Cost-effective
- Suitable for many applications
Pressure Forming
Compressed air is used together with vacuum pressure to create more detailed shapes.
Benefits:
- Higher precision
- Better surface details
- Suitable for complex designs
3. Cooling Process
After forming, the plastic product is cooled to maintain its shape.
A controlled cooling process improves:
- Dimensional accuracy
- Product stability
- Surface quality
4. Cutting and Finishing
After forming, excess material is removed.
The cutting process determines:
- Final product size
- Edge quality
- Packaging appearance
Some systems can integrate additional processes for higher automation.
Applications of Blister Thermoforming Machines
Blister thermoforming technology is widely used in many industries.
Electronics Industry
Electronic components often require protective packaging to prevent damage during transportation.
Applications include:
- Component trays
- Electronic accessories packaging
- Protective plastic inserts
Advantages:
- Product visibility
- Secure positioning
- Anti-impact protection
Medical Industry
Medical products require reliable and hygienic packaging solutions.
Blister thermoforming machines are used for:
- Medical device trays
- Disposable product packaging
- Protective medical containers
Benefits include:
- Customized designs
- Stable quality
- Efficient production
Hardware Industry
Hardware manufacturers use thermoformed packaging for:
- Tools
- Fasteners
- Mechanical parts
- Accessories
The packaging provides:
- Easy product identification
- Better organization
- Transportation protection
Food Packaging Industry
Thermoforming technology is widely used for:
- Food trays
- Plastic containers
- Product covers
Manufacturers benefit from:
- High production efficiency
- Flexible designs
- Reliable packaging quality
Consumer Goods Industry
Applications include:
- Cosmetics packaging
- Toys
- Household products
- Retail packaging
Transparent blister packaging improves product presentation and customer experience.
Benefits of Using a Blister Thermoforming Machine
1. High Production Efficiency
Compared with manual plastic forming processes, thermoforming machines provide:
- Faster production cycles
- Consistent output
- Reduced labor requirements
This makes them suitable for both medium and large-scale production.
2. Customized Packaging Solutions
One of the biggest advantages of thermoforming is design flexibility.
Manufacturers can customize:
- Product cavity shape
- Packaging size
- Material thickness
- Surface design
3. Material Cost Efficiency
Thermoforming uses plastic sheets efficiently and can reduce unnecessary material consumption.
Benefits include:
- Lower production costs
- Reduced waste
- Improved resource utilization
4. Better Product Protection
Thermoformed blister packaging provides:
- Secure product positioning
- Impact protection
- Dust resistance
This is especially important for fragile products.
5. Easy Integration with Production Lines
Modern blister thermoforming machines can be integrated with:
- Feeding systems
- Cutting systems
- Sealing equipment
- Automated packaging lines
Blister Thermoforming Machine vs Injection Molding
| Feature | Blister Thermoforming Machine | Injection Molding |
|---|---|---|
| Material Form | Plastic Sheets | Plastic Pellets |
| Tooling Cost | Lower | Higher |
| Production Speed | Fast for packaging | Fast for complex parts |
| Product Size | Flexible | More limited |
| Suitable Applications | Packaging, trays, containers | Detailed plastic components |
For packaging applications and customized plastic forming, thermoforming often provides a more flexible and economical solution.
How to Choose the Right Blister Thermoforming Machine?
Selecting suitable thermoforming equipment requires evaluating several factors.
1. Product Requirements
Consider:
- Product dimensions
- Shape complexity
- Required protection level
- Packaging design
2. Material Compatibility
Ensure the machine supports required materials, including:
- PVC
- PET
- PETG
- PP
- PS
3. Production Capacity
Evaluate:
- Required output
- Automation level
- Cycle speed
Large-scale production may require more automated solutions.
4. Mold Design Capability
A professional supplier should provide:
- Mold development
- Customized tooling
- Technical support
Good mold design directly affects forming quality.
5. Equipment Reliability
Important factors include:
- Heating stability
- Control accuracy
- Machine durability
- Maintenance requirements
Why Choose Chenghao Blister Thermoforming Solutions?
Chenghao Machinery provides industrial solutions for plastic forming, welding, and customized manufacturing applications.
The company's capabilities include:
- blister forming machines
- blister sealing machines
- high frequency machines
- plastic welding equipment
- Customized dedicated machines
With experience in plastic processing technology, Chenghao helps manufacturers develop efficient and reliable production solutions based on specific product requirements.
Conclusion
A blister thermoforming machine is an effective solution for manufacturers seeking efficient, flexible, and customized plastic packaging production.
By combining precise heating, forming technology, and customized molds, thermoforming equipment enables companies to produce high-quality blister packaging for various industries.
When selecting a thermoforming machine, manufacturers should consider product requirements, material compatibility, production capacity, and supplier expertise.
Contact our technical experts today for customized blister thermoforming machine solutions and professional plastic forming support.
